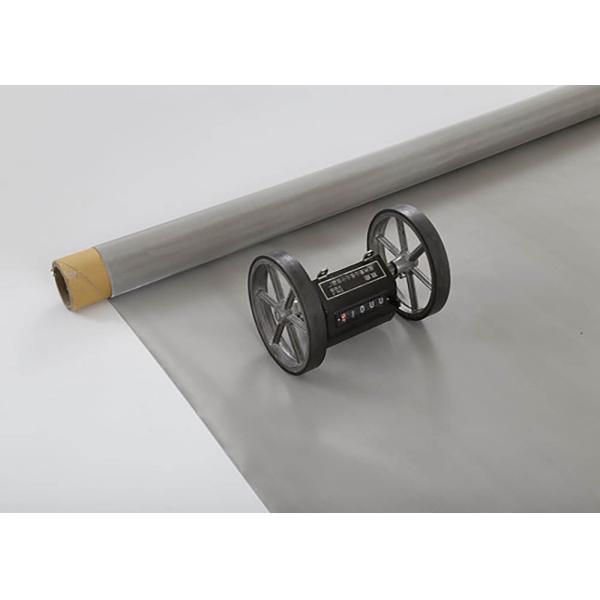

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter

Brand Name : R&K

Model Number : 18 mesh

Certification : SGS

Place of Origin : China

MOQ : 30 squaremeter

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 30 squaremeter per day

Delivery Time : 5-8 work days

Packaging Details : plastic bag ,Outer package:carton

Material : 304 stainless steel wire mesh

Color : Silver

Mesh : 18 mesh

Width : Max to 2.5 meter

Length : Normal 30 meters

Advantage : Preservative

Contact Now

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter

Wire mesh can be used for various screening, construction, protection and filtration applications. In addition, the wire cloth also helps: EMI/FEI shielding, belt manufacturing, light diffusion, heat and flame diffusion, plastic extrusion, banknotes and banknote watermarks, and optical lens manufacturing.

Industrial wire mesh and wire mesh applications include: construction screens, HVAC units, discharge of pulp and other mixtures, and sorting and screening machines.

There are many types of stainless steel nets, and some nets are used for decoration. Applications include residential fireplace guards, residential and commercial kitchen cabinets. By comparing the material with the opening size of the mesh itself, a hard cloth can also be used to determine the particle size of the material.

Some screens can also serve some industries, including electronics, mining, industrial manufacturing, battery manufacturing, automobile manufacturing, food and beverage, pulp and paper, petrochemical processing, HVAC, pharmaceuticals, flooring, mining, household appliances and screens print.

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter

Package

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter

Specification

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5

18 20 Mesh 100 MM Stainless Steel Woven Wire Mesh Panels Filter Screen Oil Filter
